What is CTD in Oceanography? Definition, Working Principle & Deployment

what does ctd stand for

A CTD instrument is the core oceanographic tool used to measure the fundamental physical properties of seawater: Conductivity, Temperature, and Pressure (Depth). By capturing these three primary baseline parameters, oceanographers calculate crucial ocean indicator data including salinity, seawater density, sound velocity, and dynamic height.

Whether mounted on research vessel winches, Autonomous Underwater Vehicles (AUVs), ROVs, or deep-sea moorings, the CTD serves as the essential hydrological baseline sensor for modern marine research, marine ecosystem monitoring, underwater acoustics, and offshore engineering.

What is a CTD and What Does It Stand For?

In oceanography, CTD stands for Conductivity, Temperature, and Depth. It is the standard electronic oceanographic instrument used to capture seawater profile data across the ocean water column.

CTD Direct Measurements

  • Conductivity (S/m)
  • Temperature (°C)
  • Pressure (dbar / Depth)

Calculated via thermodynamic equations

Derived Seawater Parameters

  • Salinity (PSU / g/kg)
  • Density (kg/m³)
  • Sound Velocity (m/s)

Instead of directly measuring salinity or density, a CTD measures three core parameters directly and uses standardized thermodynamic oceanographic equations (such as TEOS-10) to calculate derived properties:

  • Conductivity: Measures seawater’s ability to conduct electrical current. Combined with temperature and pressure, it determines salinity (dissolved salt concentration).

  • Temperature: Detects thermal variations in the ocean using highly sensitive platinum resistance thermometers.

  • Depth (Pressure): Measures hydrostatic water pressure via strain gauges or quartz transducers, which converts precisely into physical ocean depth (1 decibar $\approx$ 1 meter of depth).

Why are CTD Parameters Crucial for Ocean Science?

CTD parameters form the primary hydrological baseline for all physical, chemical, and biological marine research. High-precision CTD sensors provide the data needed to track global ocean circulation, climate change, and underwater sound propagation.

ParameterMeasuring MechanismTypical Ocean RangeSensor Precision (High-End)Primary Scientific Purpose
ConductivityInductive or cell sensors3.0 to 7.5 S/m±0.0003 S/mCalculates salinity and water mass origin
TemperaturePlatinum resistance / Thermistor-2°C to 35°C±0.0001°CTracks thermal structures and climate warming
Depth (Pressure)Quartz / Strain gauge transducer0 to 6,000+ dbar±0.015% Full ScaleMaps water column stratification and light zones

What Key Parameters can be Calculated from CTD Data?

  1. Salinity: Derived directly from conductivity, temperature, and pressure.

  2. Seawater Density (σt): Crucial for mapping deep-sea currents, pycnoclines, and water mass movement.

  3. Sound Velocity: Essential for calibrating multibeam echo sounders, underwater acoustic communications, and naval sonar positioning.

  4. Potential Temperature: Corrects raw temperature readings for the effects of pressure, revealing the true thermal characteristics of water masses at different depths. This correction is essential for accurately assessing the ocean’s vertical stability.

Yet not everything can be calculated from CTD sensor readings alone. Parameters like dissolved nutrients, chlorophyll concentration, and DNA/eDNA still require physical seawater samples — collected via Niskin bottles and analyzed back on board.

What’s more, these physical water samples serve another critical purpose: calibrating conductivity sensors against data drift, ensuring the CTD’s readings stay accurate over time. This makes shipboard sampling an irreplaceable complement to real-time CTD data.

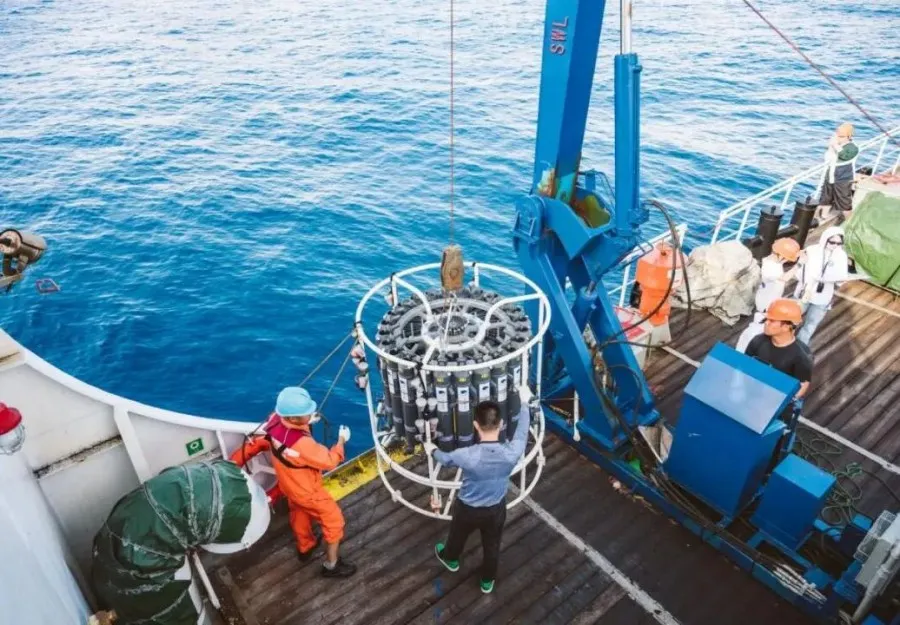

What is the Primary Purpose and Application of a CTD?

The primary purpose of a CTD instrument is to measure and map the physical structure of the ocean water column. Key application domains include:

  • Ocean Circulation & Climate Tracking: CTD data maps global thermohaline circulation (the ocean conveyor belt), helping scientists monitor global warming, heat content, and ice-melt dynamics.

  • Fisheries & Marine Habitat Mapping: Locating sharp density boundaries (pycnoclines) and oxygen minimum zones helps researchers trace marine biological habitats and fish distribution.

  • Underwater Acoustics Calibration: Accurate sound velocity profiles generated by CTDs are mandatory for calibrating multibeam sonars and underwater acoustic navigation systems during seabed mapping.

  • Deep-Sea Geological Exploration: Anomalies in temperature and conductivity profiles allow geologists to locate underwater volcanoes, hydrothermal vents, and cold seeps.

How Does a CTD Instrument Work?

1. Working Principle

A CTD instrument operates through a three-stage data acquisition pipeline:

  1. Analog Sensing: Physical sensors continuously detect analog changes in seawater conductivity, temperature, and pressure.

  2. Signal Digitization: An internal central processor and analog-to-digital (A/D) converter transform raw analog signals into high-resolution digital data.

  3. Data Logging & Transmission: Data is either recorded into internal non-volatile memory (self-contained CTD) or transmitted in real-time via conductive electro-mechanical cables to a surface vessel control station (real-time CTD).

2. System Structure and Deep-Sea Pressure Housing

A complete CTD system is made up of several key components working together. At its core are the sensors themselves — conductivity, temperature, and pressure sensors, along with any additional sensors for parameters like dissolved oxygen or turbidity.

These sensors don’t work in isolation. They connect to a surface control unit via a conducting cable, which transmits data in real time as the instrument descends. Meanwhile, a data logger inside the instrument records every reading, ensuring no data is lost even if the surface connection is interrupted.

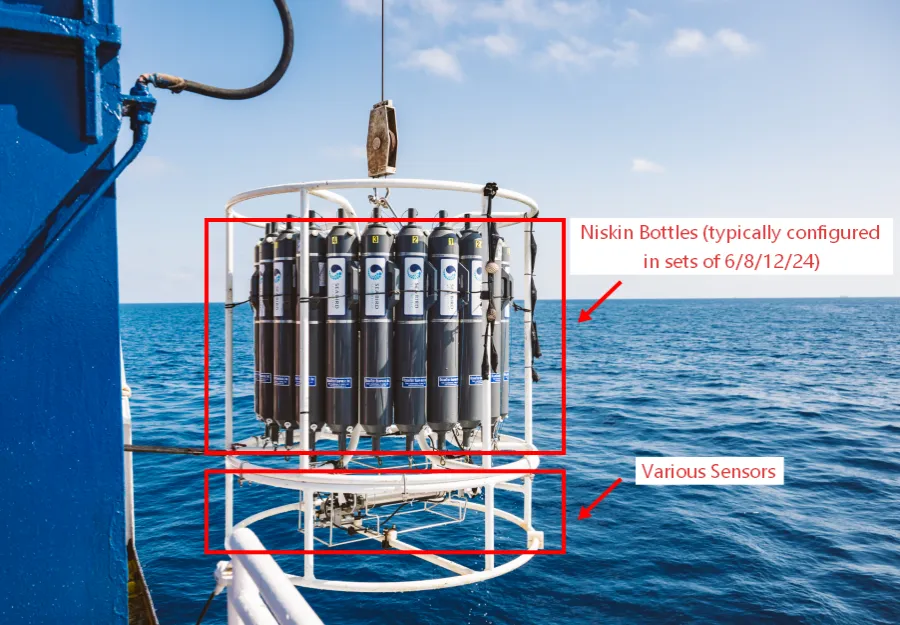

Physically, the system is built around a heavy-duty deployment frame — commonly known as a rosette. The upper portion of the frame typically houses the water sampling bottles and structural framework, while the CTD sensors themselves are mounted at the bottom of the rosette, positioned to take the most accurate readings as the instrument moves through the water column.

To withstand harsh deep-sea environments—where depths reach up to 6,000 meters and ambient pressure exceeds 60 MPa (8,700 psi)—core electronics are enclosed within a pressure housing. This housing is typically forged from high-performance titanium alloy, selected for its high strength-to-weight ratio, non-magnetic properties, and extreme resistance to marine corrosion.

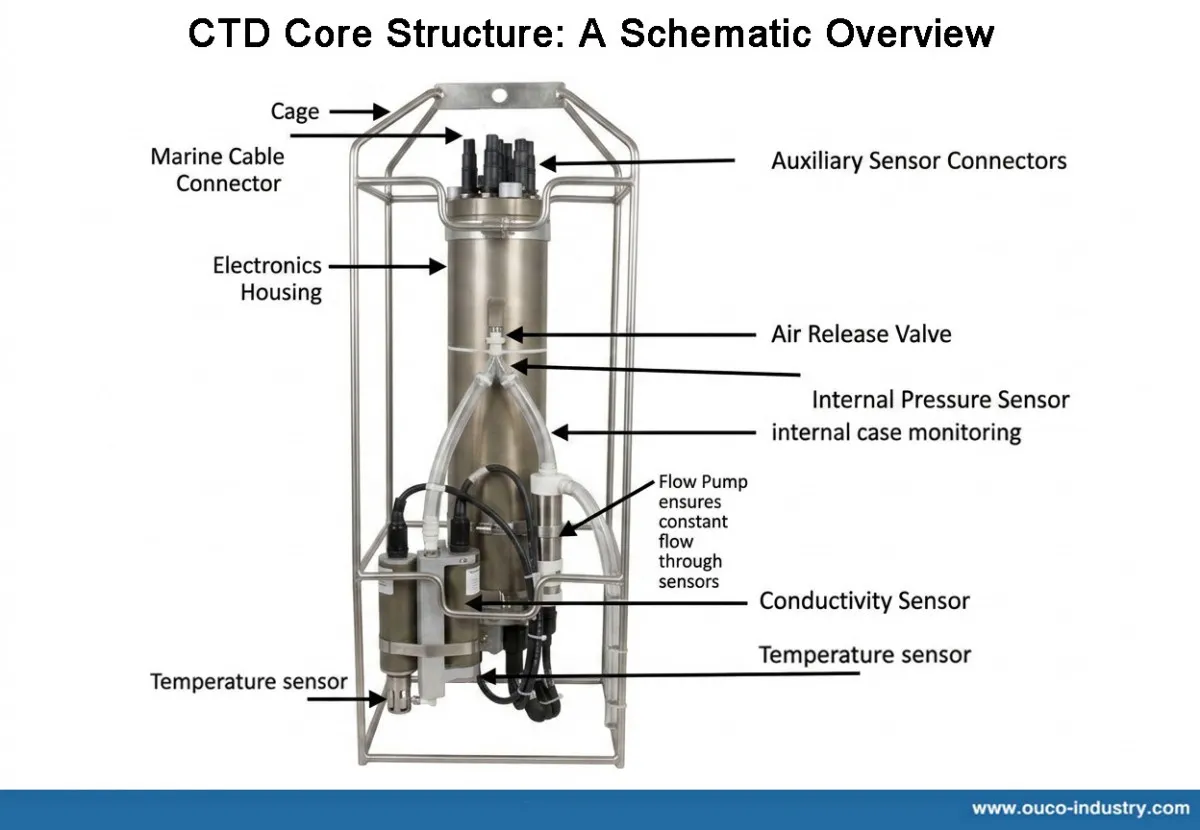

A Schematic Overview of CTD Core Structure

What are the Main CTD Observation Methods?

Oceanographers select specific CTD deployment methods based on survey targets, depth requirements, and budget constraints:

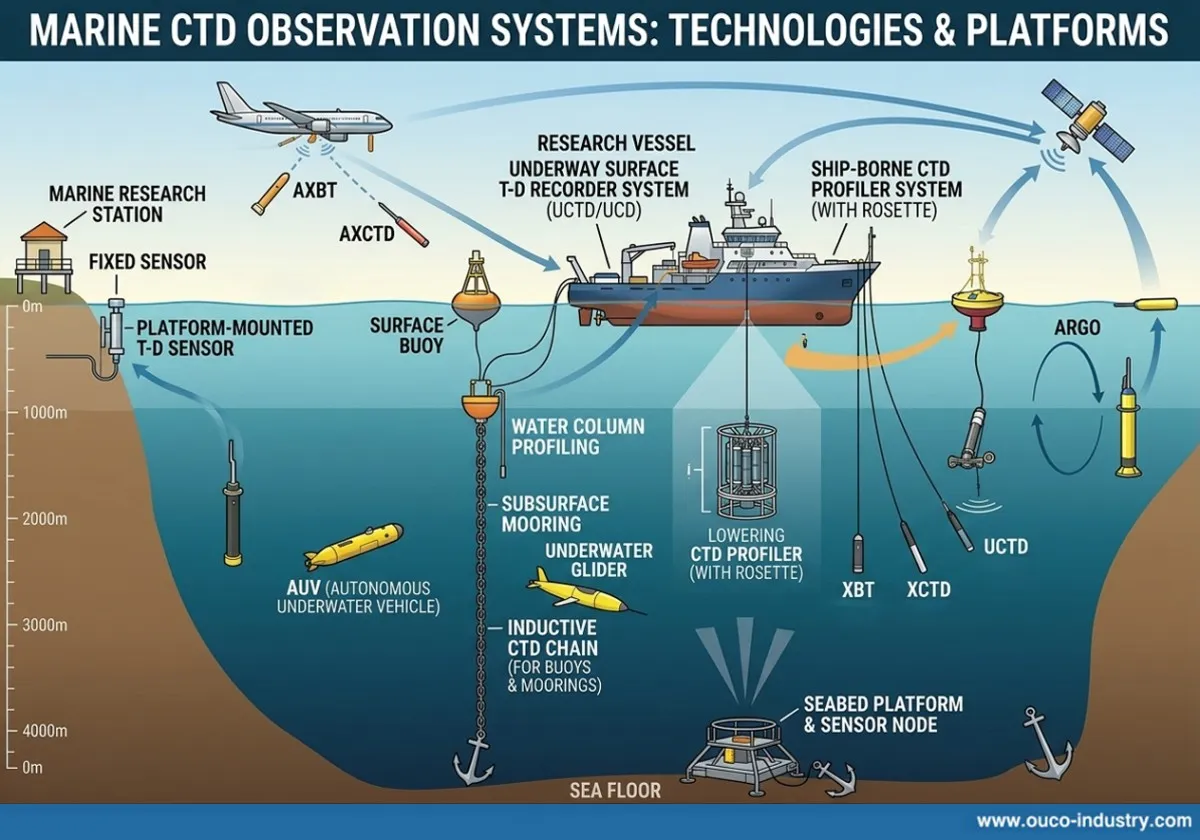

A Summary of CTD Observation Technologies

  • Ship-Based Profiling (Rosette CTD): The traditional observation method. A CTD unit mounted inside a metal rosette frame with Niskin water-sampling bottles is lowered vertically by a vessel winch to record full water-column profiles.

  • Underway & Towed CTDs (UCTD / Tow-Yo): Continuous observation systems towed behind a moving research ship. “Tow-yo” profiling repeatedly raises and lowers the instrument to map internal waves and hydrothermal plumes without stopping the ship.

  • Autonomous & Mobile Platforms (ROV / AUV / Gliders): Compact CTD sensors integrated into mobile platforms like Remotely Operated Vehicles (ROVs), Autonomous Underwater Vehicles (AUVs), and underwater gliders for long-range or dangerous missions.

  • Argo Profiling Floats: Autonomous drifting buoys deployed across global oceans that sink to $2,000 \text{ meters}$, drift, and rise to the surface periodically to broadcast temperature and salinity profiles via satellite.

  • Expendable CTDs (XCTD): Low-cost and single-use CTDs, launched from ships or aircraft for rapid temperature and salinity profiling. However, due to environmental concerns over non-degradable debris, guidelines increasingly recommend limiting XCTD use in marine protected areas.

  • Fixed Moored CTDs: Self-contained CTD units attached to undersea mooring lines, buoys, or seafloor observatories for continuous, long-term environmental monitoring at a fixed spatial coordinate. It should be noted that when instruments are deployed at sea for extended periods (e.g., two years), they face challenges such as sensor data drift and biofouling, requiring periodic CTD profile casts to recalibrate the data.

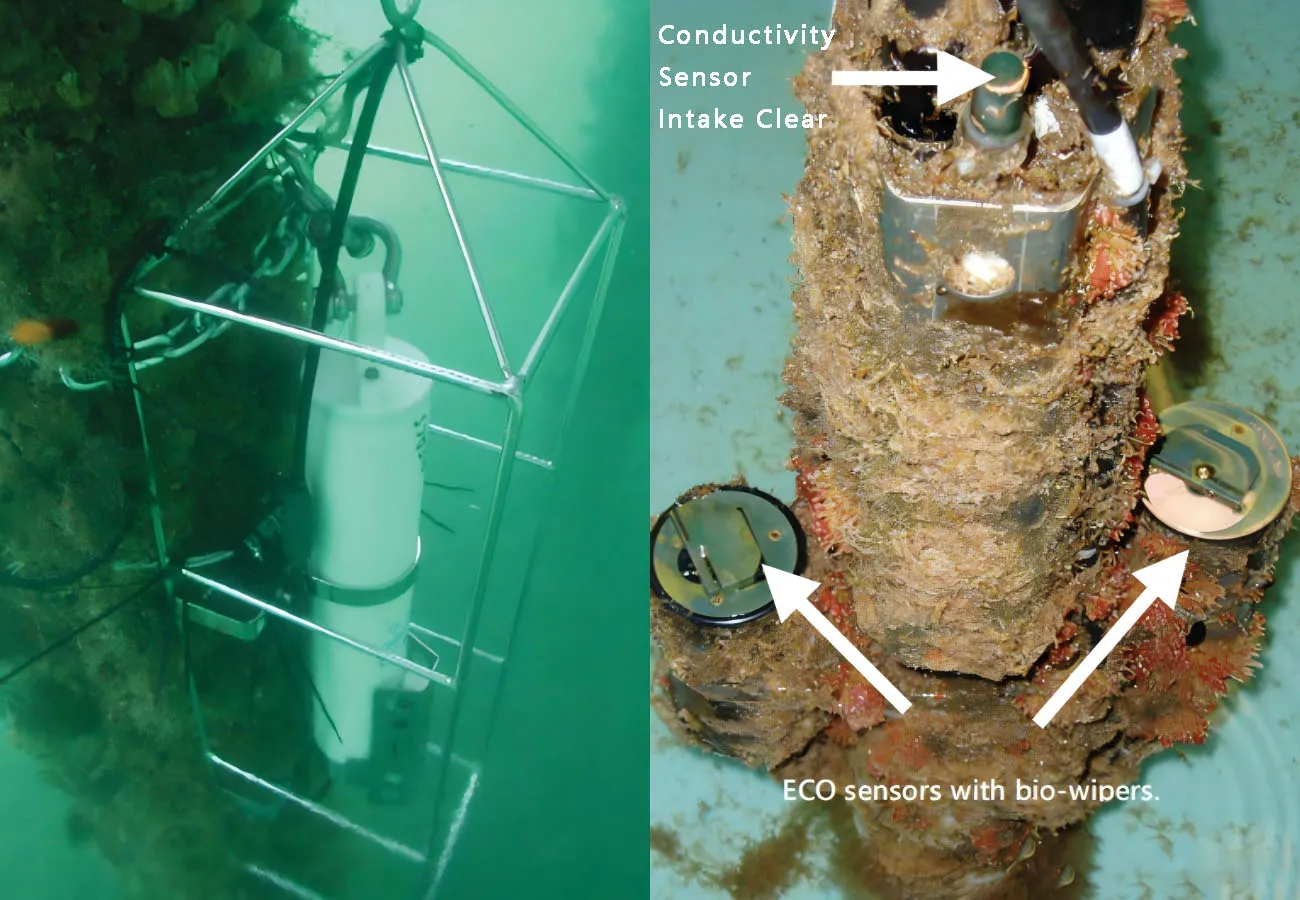

Biofouling in Fixed Moored CTD Instruments
Biofouling in Fixed Moored CTD Instruments

How to Deploy a CTD Instrument at Sea? (Step-by-Step Guide)

Deploying a heavy CTD instrument requires structured deck procedures to protect sensitive sensors and ensure crew safety. Here is a step-by-step breakdown of a typical deployment process:

STEP 1

Pre-Deployment Check

STEP 2

Platform Connection

STEP 3

Surface Soak (3–5 min)

STEP 6

Maintenance & Wash

STEP 5

Recovery & Download

STEP 4

Profiling & Monitoring

  1. Pre-Deployment Check: Verify watertight seals, battery voltage, mechanical shackles, and sensor cleanliness. Program sampling parameters (frequency, depth rate).

  2. Connection & Integration: Securely attach the CTD Instrument to the conductive winch cable or vehicle mount. Verify real-time telemetry communication with the deck unit.

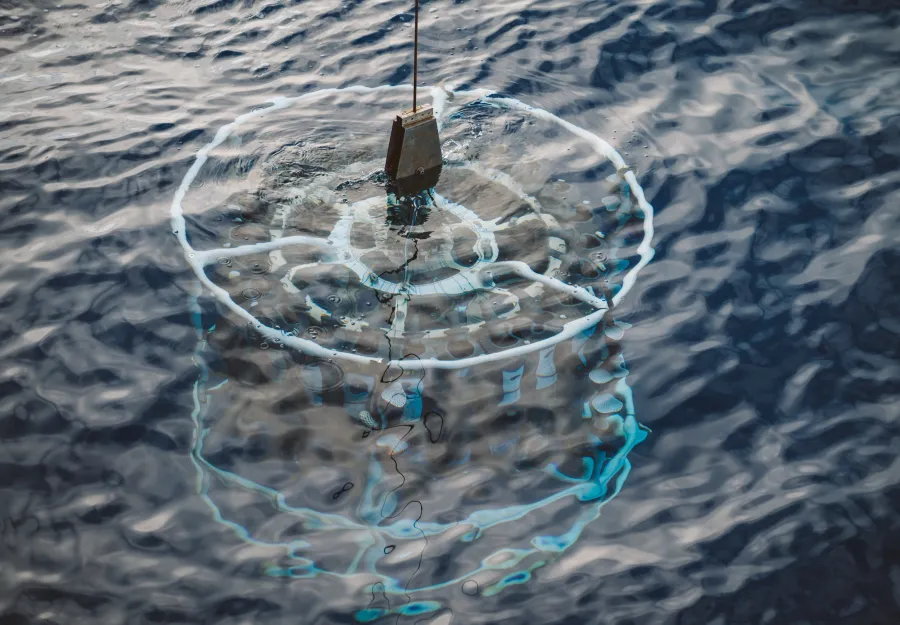

  3. Launch & Surface Soak: Launch the CTD over the vessel’s side or stern and lower it just below the surface (2–5 meters) for 3 to 5 minutes. This surface soak allows sensors to acclimatize thermally to seawater temperature and flushes air bubbles from sensor ducts.

  4. Profiling & Descent: Lower the CTD at a controlled speed (typically 0.5 to 1 m/s) while monitoring real-time profile data on surface screens.

  5. Recovery & Data Download: Winch the rosette safely back on deck, secure mechanical latches, download logged dataset, and backup raw files immediately.

  6. Maintenance & Rinsing: Rinse all sensors and conductive cables thoroughly with deionized or fresh water to prevent salt crystallization and marine biofouling.

Safe CTD Deployment: Why Specialized Deck Machinery Matters

A fully equipped CTD system—including a stainless steel/titanium rosette frame, altimeters, sensor arrays, and 24 filled Niskin water sampling bottles—can weigh anywhere from 500 kg to over 3,000 kg (3 tons).

Safely deploying and recovering such heavy, high-value oceanographic equipment in rough sea states requires heavy-duty, marine-engineered deck handling machinery:

  • Oceanographic CTD  Winches: Equipped with slip rings and armored electro-mechanical cables to ensure stable paying-out and uninterrupted real-time data transmission.

  • Marine A-Frames & Knuckle Boom Crane: Provide high structural lifting capacity, precise hydraulic control, and dynamic anti-sway positioning to safely guide heavy rosettes over the vessel’s side or stern without colliding with the hull.

  • Launch and Recovery Systems (LARS): Custom-engineered handling systems designed to automate deployment and recovery, safeguarding sensitive oceanographic payloads and deck crews during harsh weather.

Need Reliable Oceanographic Deployment Equipment?

As a global leader in marine deck machinery, OUCO Industry provides custom-engineered A-Frames, oceanographic winches, and complete LARS (Launch and Recovery Systems) built to withstand extreme polar temperatures, deep-sea pressures, and high sea states. Contact the OUCO engineering team today to secure your next marine research vessel project.

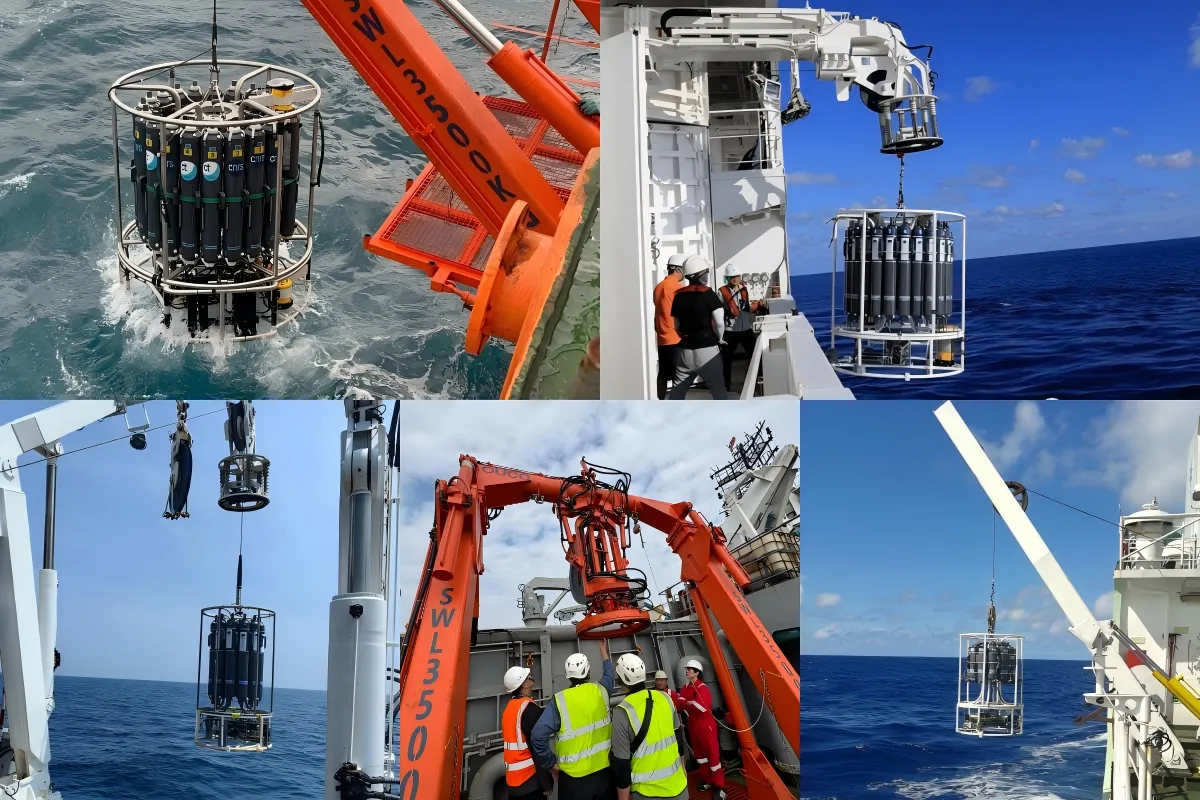

CTD Deploy equipment

Summary

The CTD remains the fundamental key to decoding ocean physics, chemistry, and dynamics. Evolving from simple vertical profiling to modern integration across AUVs, Argo floats, and deep-sea networks, CTD instruments provide the hydrological baseline essential for understanding our oceans. As CTD technologies integrate additional biogeochemical sensors (dissolved oxygen, pH, optical turbidity), safe, precise deployment machinery will remain critical for deep-sea exploration.
